Maximum pad life. Minimum brake fade.

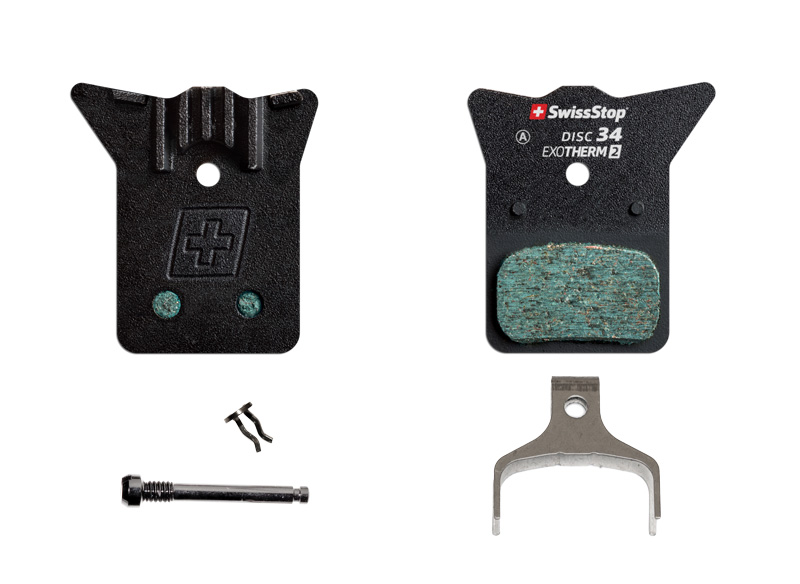

EXOTherm2 combines an extremely durable, smooth modulating pad compound with a cooling fin equipped back plate which provides consistent, powerful braking in all conditions.
A life-size drawing of Disc 34 is available for download.
You can match the shape and dimensions of your pads to help determine if this model is the correct fit for your brakes.
2 MB PDF file.
A5 size paper printable on A4 and US letter.
Print at 100% size. Do not scale the print out.
Step 1. On a gradual downhill slope, drag each brake for 20-30 seconds, alternating between front and rear. Repeat 2-3 times.
Step 2. On a steeper slope, engage and drag the brakes for 10-15 seconds then increase lever pressure until the bike slows almost to a complete stop. Repeat 2-3 times.
Pro Tip: The front pads will have been heated more than the rear. To achieve optimal performance, exchange the front and rear pads then repeat Step 2.
CAUTION before replacing or exchanging brake pads it is essential to let all parts cool.
